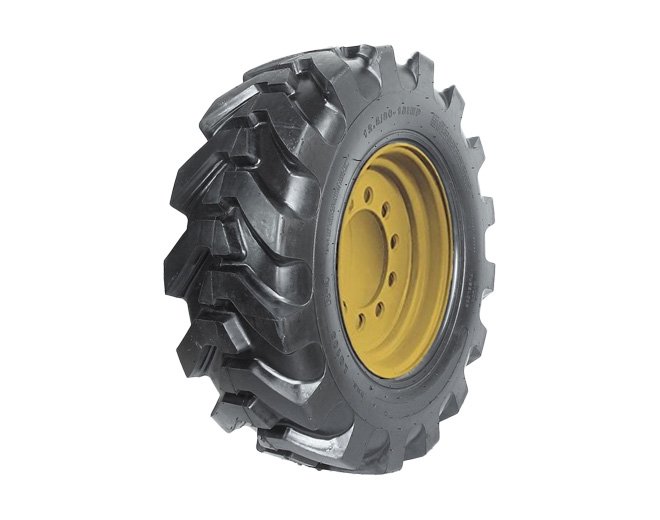

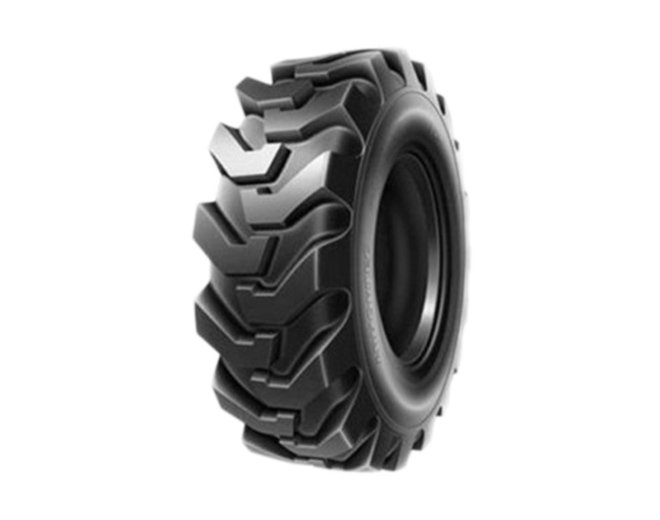

LQ105

Features:
For Load and Inflation Pressure on agricultural tractors, please consult the technical department.
For tractor steer wheels, load is 80% of free rolling load.
For 12.5/80-18, the load capacity and inflation pressure is for free rolling application.

Usage:
Backhoe Loader/Telehandler / Terrain Forklift / Loader

Suitable Conditions:

bias otr tyre

Share to:

Sizes AndSpecs

Tyre Size	PR	Tread Pattern		Tread Depth (mm)	Rim Size	Tube Type	Inflated Dimensions (mm)		Speed Symbal	Inflation Pressure (kPa)	Maximum Load Versus Speed(KG)
		Type	TRA Code				Inflated Dimensions (mm)				Maximum Load Versus Speed(KG)
		Type	TRA Code				Outer Diameter	Section Width			0km/h	15km/h	25km/h	30km/h	40km/h	50km/h
12.5/80-18 (IMP)	12	LQ105	R4	28	W918 (1118)	TBLS	1014	322	A6	370	4375	3205	2835	2650	2385	-
16.9-24 (IND)	8	LQ105	R4	26	W15L24 (W14L24)	TBLS	1351	464	A8	190	6095	3550	2940	2835	2650	2410
	10	LQ105	R4	26		TBLS	1351	464	A8	220	6900	4040	3330	3210	3000	2730
	12	LQ105	R4	26		TBLS	1351	464	A8	260	7475	4355	3610	3480	3250	2960
17.5L-24 (IND)	6	LQ105	R4	29	W15L24 (W14L24)	TBLS	1278	480	A8	140	4600	2680	2220	2140	2000	1820
	8	LQ105	R4	29		TBLS	1278	480	A8	170	5590	3255	2695	2600	2430	2210
	10	LQ105	R4	29		TBLS	1278	480	A8	220	6440	3750	3110	2995	2800	2550
	12	LQ105	R4	29		TBLS	1278	480	A8	260	7475	4355	3610	3480	3250	2690
19.5L-24 (IND)	8	LQ105	R4	27	W16L24 (DA16A,W15L24)	TBLS	1356	535	A8	170	6270	3650	3025	2915	2725	2480
	10	LQ105	R4	27		TBLS	1356	535	A8	190	7075	4120	3415	3290	3075	2800
	12	LQ105	R4	27		TBLS	1356	535	A8	230	7935	4625	3830	3690	3450	3140
	14	LQ105	R4	27		TBLS	1356	535	A8	260	8915	5195	4300	4145	3875	3525
21L-24 (IND)	10	LQ105	R4	37	W18L24 (W1824,DW18A*24)	TBLS	1424	576	A8	180	7705	4490	3720	3585	3350	3050
	12	LQ105	R4	37		TBLS	1424	576	A8	220	8915	5195	4300	4145	3875	3525
	16	LQ105	R4	37		TBLS	1424	576	A8	280	10350	6030	4995	4815	4500	4095
18.4-26 (IND)	12	LQ105	R4	27	W16L26 (DW16A,W15L26)	TBLS	1523	505	A8	250	9200	5360	4440	4280	4000	3640
16.9-28 (IND)	12	LQ105	R4	32	W15L28 (W14L28)	TBLS	1452	464	A8	260	8165	4755	3940	3800	3550	3230

Size	PR	PTTERN		S.R.	S.W.	O.D.	Tube type	Loading (kg)	Pressure (kpa)
Size	PR	TYPE	TRA CODE	S.R.	（mm)	(mm)			Pressure (kpa)
16.9-24	8	MX105	R-4	W15L	430	1309	TL	2650	190
16.9-24	10	H658		W15L	430	1309		2900	220
16.9-28	10	MX105	R-4	W15L	430	1410	TL	2380	200
16.9-28	12			W15L	430	1410		2730	240
17.5L-24	10	MX105	R-4	W15L	445	1241	TL	2800	220
17.5L-24	12			W15L	445	1241		3075	260
19.5L-24	10	MX105	R-4	DW16A	495	1314	TL	3000	190
19.5L-24	12			DW16A	495	1314		3450	230
21L-24	10	MX105	R-4	DW18A	533	1378	TL	3350	180
21L-24	12			DW18A	533	1378		3875	220
18.4-26	10	MX105	R-4	W16L	467	1438	TL	2645	180
18.4-26	12			W16L	467	1438		2985	230
18.4-28	10	MX105	R-4	W16L	467	1488	TL	2715	180
18.4-28	12			W16L	467	1488		3135	220
Size	PR			S.R.	S.W.	O.D.		Loading (kg)	Pressure (kpa)
Size	PR			S.R.	（mm)	(mm)		Loading (kg)	Pressure (kpa)
10.5/80-18	10	MX105	R-4/ I-3	W9	274	907	TL	1360	370
10.5/80-18	12	HK659		W9	274	907		1550	420
12.5/80-18	12	MX105	R-4/ I-3	W9	308	987	TL	1850	370
12.5/80-18	14			W9	308	987		2120	430
