Products
Suitable Conditions:

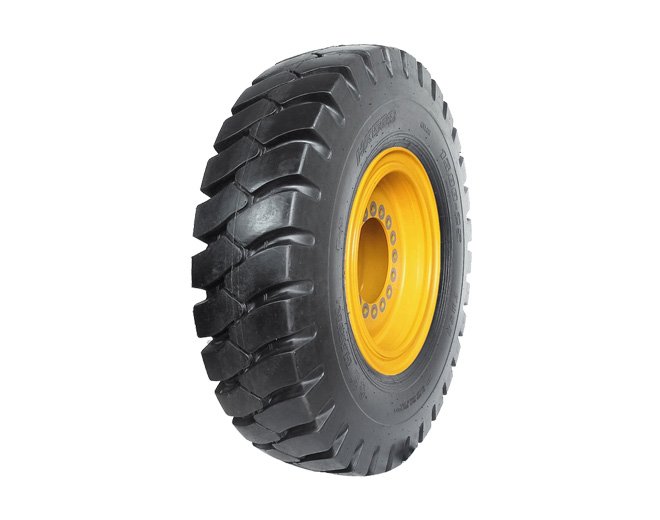

Radial OTR Tyre
Sizes AndSpecs
| Tyre Size | PR | Tread Pattern | Rim Size | Tube Type | Inflated Dimensions (mm) | Max Load(KG) Versus Speed | Inflation Pressure(kPa) | |||||
| Type | TRA Code | |||||||||||
| Outer Diameter | Section Width | 16km/h | 50km/h | |||||||||
| 14.00-24 | 24 | HK508 | E3 | 10 | TT | 1368 | 386 | - | 5150 | 575 | ||
| 13.00-25 | 28 | HK508 | E3 | 8.5 | TT | 1309 | 386 | - | 4600 | 700 | ||
| Size | PR | T.D. | S.R. | S.W. | O.D. | Max Loading (kg) | Pressure (kpa) | Speed Index | Load Index | Code | |
| (mm) | (mm) | (mm) | Dual | Single | |||||||
| 12.00-20 | 20 | 32 | 8.5 | 315 | 1125 | 3450 | 4000 | 810/800 | G | 151/156 | K2009 |
| 11.00-20 | 18 | 30 | 8 | 293 | 1105 | 3150 | 3650 | 840/910 | 148/153 | ||
| 9.00-16 | 16 | 22 | 6.50H | 255 | 902 | 1850 | 2120 | 129/134 | |||
| 8.25-16 | 16 | 22 | 6.50H | 235 | 865 | 1600 | 1800 | 730 | 124/128 | ||
| 7.50-16 | 16 | 22 | 6.00G | 215 | 815 | 1320 | 1500 | 118/122 | |||
| Size | PR | T.D. | S.R. | S.W. | O.D. | Max Loading (kg) | Pressure (kpa) | Speed Index | Load Index | Code | |
| (mm) | (mm) | (mm) | Dual | Single | |||||||
| 10.00-20 | 18 | 30 | 7.5 | 278 | 1073 | 2900 | 3350 | 840/910 | G | 145/150 | K2018 |
| 7.50-16 | 16 | 22 | 6.00G | 215 | 815 | 1320 | 1500 | 730 | 118/122 | ||
| 7.00-16 | 14 | 21 | 5.50F | 200 | 785 | 1180 | 1320 | 114/118 | |||
| 6.50-16 | 12 | 18 | 5.50F | 185 | 750 | 925 | 1060 | 630 | 105/110 | ||
| 6.00-15 | 12 | 17.5 | 4.50E | 170 | 717 | 825 | 730 | 530 | 97/101 | ||
| 6.00-14 | 12 | 17 | 4 ½ J | 170 | 691 | 710 | 800 | 96/100 | |||
| 6.00-13 | 10 | 15 | 4.50B | 170 | 666 | 580 | 650 | 420 | 89/93 | ||
| Size | PR | T.D. | S.R. | S.W. | O.D. | Max Loading (kg) | Pressure (kpa) | Code | ||
| (mm) | (mm) | (mm) | Dual | Single | Dual | Single | ||||
| 11.00-20 | 18 | 22 | 8 | 293 | 1105 | 3150 | 3650 | 840 | 910 | H2009 |
| 12.00-20 | 20 | 22 | 8.5 | 315 | 1145 | 3450 | 4000 | 810 | 880 | E-4 |
| 10.00-20 | 18 | 30 | 7.5 | 278 | 1073 | 2900 | 3350 | 840 | 910 | H2018 |
| 11.00-20 | 18 | 30 | 8 | 293 | 1105 | 3150 | 3650 | 840 | 910 | IND-4 |
| Size | PR | T.D. | S.R. | S.W. | O.D. | Loading (kg) @ 50km/h | Pressure (kpa) @ 50km/h | Code | ||
| (mm) | (mm) | (mm) | ||||||||
| 13.00-25 | 22 | 26 | 8.5 | 350 | 1300 | 4250 | 550 | H2011 E-3 | ||
| 32 | 5010 | 740 | H2018 IND-4 | |||||||
| 14.00-20 | 20 | 26 | 10 | 375 | 1265 | 4375 | 525 | H2018 | ||
| 28 | 5135 | 700 | IND-4 | |||||||
| 14.00-24 | 28 | 30 | 10 | 375 | 1370 | 5600 | 650 | H2012 E-3 | ||
| 36 | 6640 | 740 | H2018 IND-4 | |||||||
| 40 | 6900 | 840 | ||||||||
| 14.00-25 | 28 | 30 | 10 | 375 | 1370 | 5600 | 650 | H2012 E-3 | ||
| 36 | 6640 | 740 | H2018 IND-4 | |||||||
| 40 | 6900 | 840 | ||||||||
