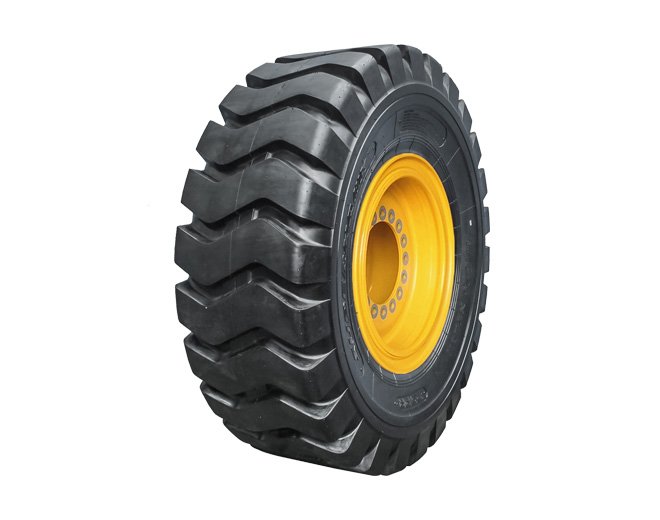

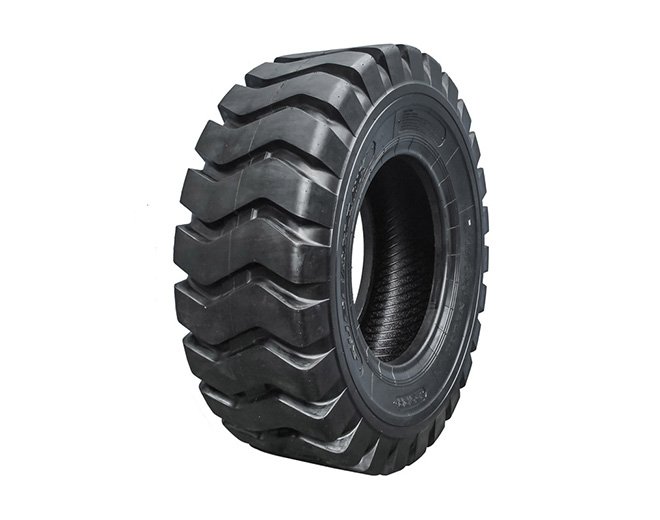

LQ101

Features:
For earthmover application at lower speeds, for static loads and for industrial applications.

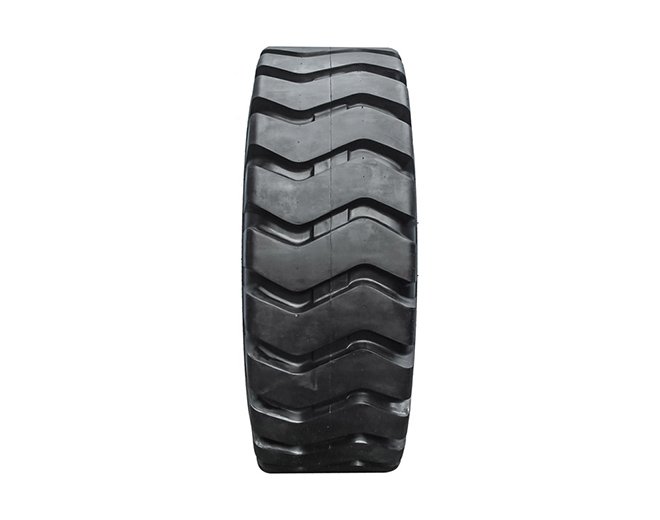

Non-directional tread pattern design supplies the excellent traction, land grip and chunking resistance performance.

Usage:
Aticulated Dump Truck/ Scraper/ Grader/ Loader&Dozer/ Shovel/Shuttle Truck/Span Carrier

Share to:

Sizes AndSpecs

Tyre Size	PR	Tread Pattern		Tread Depth (mm)	Rim Size	Tube Type	Inflated Dimensions (mm)		Max Load(KG) Versus Speed		Speed Versus Inflation Pressure(kPa)
		Type	TRA Code				Inflated Dimensions (mm)		Max Load(KG) Versus Speed		Speed Versus Inflation Pressure(kPa)
		Type	TRA Code				Outer Diameter	Section Width	10km/h	50km/h	10km/h	50km/h
16/17-20	10	LQ101	L3/E3/G3	26	13(SDC)	TT	1075	410	4240	2400	325	250
	14	LQ101	L3/E3/G3	26	13(SDC)	TT	1075	410	5150	2925	450	350
	18	LQ101	L3/E3/G3	26	13(SDC)	TT	1075	410	5800	3350	550	450
17.5-25	8	LQ101	L3/E3/G3	30	14.00/1.5	TT/TL	1350	445	4750	2800	225	250
	12	LQ101	L3/E3/G3	30	14.00/105	TT/TL	1350	445	6150	3650	350	225
	16	LQ101	L3/E3/G3	30	14.00/1.6	TT/TL	1350	445	7300	4250	475	300
	20	LQ101	L3/E3/G3	30	14.00/1.6	TT/TL	1350	445	8250	5000	575	400
20.5-25	16	LQ101	L3/E3/G3	32	17.00/2.0	TT/TL	1490	520	8250	5450	350	275
	20	LQ101	L3/E3/G3	32	17.00/2.0	TT/TL	1490	520	9500	6000	450	325
	24	LQ101	L3/E3/G3	32	17.00/2.0	TT/TL	1490	520	10300	6700	525	400
	28	LQ101	L3/E3/G3	32	17.00/2.0	TT/TL	1490	520	11500	7500	625	475
23.5-25	26	LQ101	L3/E3/G3	36	19.50/2.5	TT/TL	1615	595	9500	6150	300	225
	20	LQ101	L3/E3/G3	36	19.50/2.5	TT/TL	1615	595	10900	7300	375	300
	24	LQ101	L3/E3/G3	36	19.50/2.5	TT/TL	1615	595	12500	8000	475	350
	28	LQ101	L3/E3/G3	36	19.50/2.5	TT/TL	1615	595	13600	8750	550	400
26.5-25	16	LQ101	L3/E3/G3	37	22.00/3.0	TT/TL	1750	675	11500	7300	275	200
	20	LQ101	L3/E3/G3	37	22.00/3.0	TT/TL	1750	675	13200	8250	350	250
	24	LQ101	L3/E3/G3	37	22.00/3.0	TT/TL	1750	675	14000	9250	400	300
	28	LQ101	L3/E3/G3	37	22.00/3.0	TT/TL	1750	675	15500	10000	475	350
	32	LQ101	L3/E3/G3	37	22.00/3.0	TT/TL	1750	675	17000	11200	550	425
29.5-25	16	LQ101	L3/E3/G3	42	25.00/3.5	TT/TL	1875	750	12900	8000	250	175
	18	LQ101	L3/E3/G3	42	25.00/3.5	TT/TL	1875	750	15000	10000	325	250
	22	LQ101	L3/E3/G3	42	25.00/3.5	TT/TL	1875	750	17500	11500	425	325
29.5-29	28	LQ101	L3/E3/G3	61	25.00/3.5	TT/TL	1975	750	19000	12100	425	325
	34	LQ101	L3/E3/G3	61	25.00/4.0	TT/TL	1975	750	21200	14000	525	400
	40	LQ101	L3/E3/G3	61	25.00/4.0	TT/TL	1975	750	23600	15000	625	475
