Suitable Conditions:

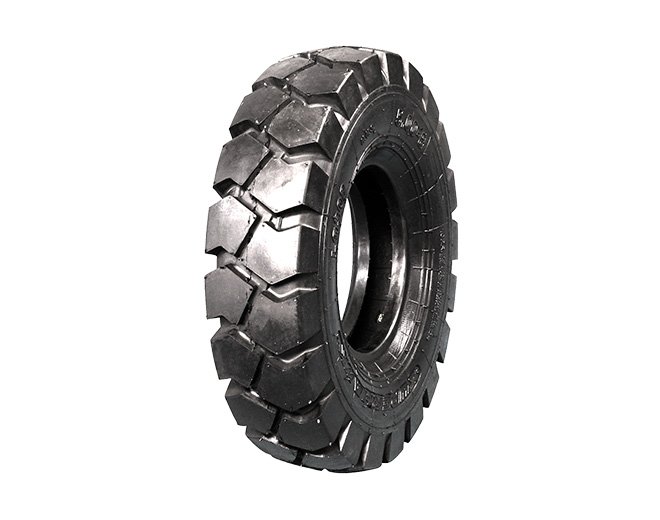

Bias OTR Tyre
Sizes AndSpecs
| Tyre Size | PR | Tread pattern | Tread Depth (mm) | Rim Size | Tube | Flap | Tyre Dimensions | Inflation Pressure (kPa) | Load Capacity/Forklift(kg) | ||||
| Max in Service(mm) | 25km/h | 35km/h | |||||||||||
| Outer Diameter | Section Width | Drive Wheel | Steer Wheel | Drive Wheel | Steer Wheel | ||||||||
| 5.00-8 | 8 | LQ301 | 10 | 3.00D | 5.00-8 | 5.00-8 | 476 | 143 | 825 | 1235 | 950 | 1190 | 885 |
| 10 | LQ301 | 10 | 3.00D | 5.00-8 | 5.00-8 | 476 | 143 | 1000 | 1415 | 1090 | 1365 | 1015 | |
| 18*7-8 (180/70-8) | 16 | LQ301 | 10 | 4.33R | 18*7-8 | 18*7-9 | 471 | 187 | 1000 | 2145 | 1650 | 2065 | 1535 |
| 18 | LQ301 | 10 | 4.33R | 18*7-8 | 18*7-9 | 471 | 187 | 1050 | 2405 | 1850 | 2315 | 1720 | |
| 6.00-9 | 10 | LQ301 | 12 | 4.00E | 6.00-9 | 6.00-10 | 540 | 160 | 860 | 1505 | 1275 | 1400 | 1120 |
| 12 | LQ301 | 12 | 4.00E | 6.00-9 | 6.00-10 | 540 | 160 | 1030 | 1675 | 1415 | 1560 | 1245 | |
| 7.00-9 | 10 | LQ301 | 13.5 | 5.00S | 7.00-9 | 7.00-9 | 590 | 190 | 860 | 1995 | 1685 | 1850 | 1480 |
| 21*8-9 (200/75-9) | 14 | LQ301 | 12 | 6.00E | 21*8-9 | 21*8-10 | 546 | 216 | 900 | 2535 | 1950 | 2440 | 1815 |
| 16 | LQ301 | 12 | 6.00E | 21*8-9 | 21*8-10 | 546 | 216 | 1000 | 2755 | 2120 | 2650 | 1970 | |
| 6.50-10 | 10 | LQ301 | 13 | 5.00F | 6.50-10 | 6.50-11 | 590 | 175 | 775 | 1950 | 1500 | 1875 | 1395 |
| 12 | LQ301 | 13 | 5.00F | 6.50-10 | 6.50-11 | 590 | 175 | 900 | 2145 | 1650 | 2065 | 1535 | |
| 14 | LQ301 | 13 | 5.00F | 6.50-10 | 6.50-11 | 590 | 175 | 1000 | 2340 | 1800 | 2250 | 1675 | |
| 7.00-12 | 12 | LQ301 | 14 | 5.00S | 7.00-12 | 7.00-13 | 675 | 190 | 860 | 2680 | 2060 | 2575 | 1915 |
| 14 | LQ301 | 14 | 5.00S | 7.00-12 | 7.00-13 | 685 | 207 | 900 | 2755 | 2120 | 2650 | 1970 | |
| 8.25-12 | 12 | LQ301 | 16 | 5.00S | 8.25-12 | 8.25-12 | 735 | 216 | 720 | 3060 | 2585 | 2840 | 2270 |
| 7.00-15 | 14 | LQ301 | 12 | 5.5 | 7.00/7.50/8.15-15 | 7.00/7.50/8.15-15 | 761 | 213 | 900 | 3350 | 2575 | 3220 | 2395 |
| 250-15 (250/75-15) | 18 | LQ301 | 12 | 7.5 | 250-15 | 8.15/250/300-15 | 750 | 270 | 950 | 4745 | 3650 | 4565 | 3395 |
| 20 | LQ301 | 12 | 7.5 | 250-15 | 8.15/250/300-15 | 750 | 270 | 1050 | 5200 | 4000 | 5000 | 3720 | |
| 28*9-15 (8.15-15) (225/70-15) | 12 | LQ301 | 10 | 7.0 | 700/750/815-15 | 8.15/250/300-15 | 706 | 220 | 830 | 2790 | 2355 | 2590 | 2070 |
| 14 | LQ301 | 10 | 7.0 | 700/750/815-15 | 8.15/250/300-15 | 706 | 220 | 970 | 3050 | 2575 | 2835 | 2265 | |
| 16 | LQ301 | 10 | 7.0 | 700/750/815-15 | 8.15/250/300-15 | 706 | 220 | 1000 | 3115 | 2630 | 2895 | 2310 | |
| 8.25-15 | 14 | LQ301 | 14 | 6.5 | 8.25-15 | 7.00/7.50/8.25-15 | 853 | 253 | 800 | 4225 | 3250 | 4065 | 3025 |
| 16 | LQ301 | 14 | 6.5 | 8.25-15 | 7.00/7.50/8.25-15 | 853 | 253 | 925 | 4615 | 3550 | 4440 | 3300 | |
| 300-15 (315/70-15) | 18 | LQ301 | 14 | 8.0 | 300-15 | 8.15/250/300-15 | 857 | 324 | 800 | 6015 | 4625 | 5780 | 4300 |
| 20 | LQ301 | 14 | 8.0 | 300-15 | 8.15/250/300-15 | 857 | 324 | 950 | 6340 | 4875 | 6095 | 4535 | |
| 9.00-20 | 16 | LQ301 | 14 | 7.0 | 8.25/9.00-20 | 8.25/9.00-20 | 1038 | 279 | 1000 | 5700 | 4750 | 5465 | 4420 |
| Size | PR | T.D. | S.R. | O.D. | S.W. | Pressure | Max Loading (kg) | Code | |||||
| (mm) | (mm) | (mm) | (kpa) | 15km/h | 25km/h | 35km/h | |||||||
| Load | Rota | Load | Rota | Load | Rota | ||||||||
| 8.25-15 | 12 | 18 | 6.5 | 840 | 235 | 720 | 3330 | 2560 | 3000 | 2310 | 2680 | 2200 | H989 |
| 14 | 800 | 4435 | 3410 | 4010 | 3085 | 3700 | 2845 | NHS | |||||
| 28*9-15 （8.15-15） （225/70-15） | 12 | 19 | 7 | 710 | 220 | 830 | 3020 | 2450 | 2790 | 2355 | 2590 | 2070 | |
| 14 | 970 | 3350 | 2810 | 3050 | 2575 | 2835 | 2265 | ||||||
| 8.25-12 | 12 | 18 | 6.5 | 765 | 235 | 750 | 3750 | 2885 | 3395 | 2610 | 3120 | 2400 | |
| 7.00-12 | 12 | 13 | 5.00S | 676 | 190 | 850 | 2830 | 2175 | 2555 | 1965 | 2355 | 1810 | |
| 6.50-10 | 10 | 12 | 5.50F | 590 | 175 | 775 | 1965 | 1510 | 1775 | 1365 | 1460 | 1260 | |
| 7.00-9 | 10 | 13 | 5.00S | 590 | 190 | 850 | 2365 | 1820 | 2145 | 1650 | 1975 | 1520 | |
| 6.00-9 | 10 | 11 | 4.00F | 540 | 160 | 850 | 1795 | 1380 | 1625 | 1250 | 1495 | 1150 | |
| 5.00-8 | 10 | 11 | 3.00D | 470 | 137 | 900 | 1295 | 995 | 1170 | 900 | 1080 | 830 | |
| 16*6-8 | 10 | 13 | 4.33R | 425 | 152 | 850 | 1295 | 995 | 1170 | 900 | 1080 | 830 | |
| 18*7-8 （180/70-8） | 14 | 15 | 4.33R | 465 | 173 | 900 | 1840 | 1415 | 1665 | 1280 | 1335 | 1180 | |
| 21*8-9 （200/75-9） | 10 | 15 | 6.00E | 535 | 200 | 625 | 1860 | 1430 | 1685 | 1295 | 1475 | 1190 | |
| 23*9-10 | 12 | 16 | 6.50F | 595 | 225 | 650 | 2485 | 1910 | 2250 | 1730 | 2065 | 1590 | |
| Size | S.R. | O.D. | S.W. | Max Loading (kg) | Other Industrial | ||||||
| (mm) | (mm) | Counterbalance Lift Truck | |||||||||
| 10km/h | 16km/h | 25km/h | 16km/h | CODE | |||||||
| Load | Rota | Load | Rota | Load | Rota | Load | |||||
| 9.00-20 | 6.5 | 1038 | 238 | 6450 | 5160 | 6235 | 4675 | 5805 | 4355 | 4450 | |
| 9.00-20 | 7 | 1038 | 238 | 6450 | 5160 | 6235 | 4675 | 5805 | 4355 | 4450 | |
| 10.00-20 | 7.5 | 1073 | 240 | 7240 | 5795 | 6995 | 5240 | 6610 | 4885 | 4995 | H991B |
| 10.00-20 | 8 | 1073 | 240 | 7240 | 5795 | 6995 | 5240 | 6610 | 4885 | 4995 | SOLID |
| 11.00-20 | 7.5 | 1075 | 252 | 7240 | 5795 | 6995 | 5240 | 6610 | 4885 | 4995 | |
| 11.00-20 | 8 | 1075 | 252 | 7560 | 6050 | 7300 | 5490 | 6810 | 5120 | 5210 | |
| 12.00-20 | 8 | 1146 | 290 | 8800 | 7000 | 8500 | 6925 | 8000 | 6450 | 6595 | |
| 12.00-20 | 8.5 | 1146 | 290 | 8800 | 7000 | 8500 | 6925 | 8000 | 6450 | 6595 | |
| Size | S.R. | O.D. | S.W. | Max Loading (kg) | Other Industrial | Code | |||||
| (mm) | (mm) | Counterbalance Lift Truck | |||||||||
| 10km/h | 16km/h | 25km/h | 16km/h | ||||||||
| Load | Rota | Load | Rota | Load | Rota | Load | |||||
| 400-8 | 3.0/3.75 | 423 | 115 | 1055 | 845 | 1020 | 765 | 950 | 715 | 730 | H992A |
| 5.00-8 | 3 | 469 | 126 | 1210 | 970 | 1175 | 880 | 1095 | 820 | 840 | H992B |
| 18*7-8 | 4.33 | 457 | 154 | 2350 | 1880 | 2265 | 1700 | 2110 | 1585 | 1620 | SOLID |
| （180/70-8） | |||||||||||
| 6.00-9 | 4 | 545 | 140 | 1920 | 1535 | 1855 | 1390 | 1730 | 1295 | 1325 | |
| 6.50-10 | 5 | 597 | 157 | 2840 | 2110 | 2545 | 1910 | 2370 | 1780 | 1820 | |
| 7.00-9 | 5 | 578 | 170 | 2370 | 2015 | 2805 | 1925 | 2370 | 1750 | 1785 | |
| 7.00-12 | 5 | 683 | 168 | 3015 | 2410 | 2910 | 2185 | 2710 | 2035 | 2075 | |
| 8.25-12 | 6.5 | 735 | 206 | 3326 | 2660 | 3215 | 2410 | 2995 | 2245 | 2295 | |
| 8.15-15 | 7 | 706 | 207 | 4090 | 3270 | 3945 | 2960 | 3675 | 2755 | 2820 | |
| （28*9-15） | |||||||||||
| （225/75-15） | |||||||||||
| 8.25-15 | 6.5 | 847 | 205 | 4940 | 3950 | 4765 | 3575 | 4440 | 3330 | 3045 | |
| Size | S.R. | O.D. | S.W. | Max Loading (kg) | Other Industrial | Code | |||||
| (mm) | (mm) | Counterbalance Lift Truck | |||||||||
| 10km/h | 16km/h | 25km/h | 16km/h | ||||||||
| Load | Rota | Load | Rota | Load | Rota | Load | |||||
| 16*6-8 | 4.33 | 418 | 156 | 1500 | 1200 | 1445 | 1085 | 1345 | 1010 | 1035 | H993 |
| 21*8-9 （200/75-9） | 6 | 535 | 189 | 2810 | 2250 | 2715 | 2035 | 2530 | 1895 | 1940 | SOLID |
| 23*9-10 | 6.5 | 597 | 230 | 4005 | 3205 | 3845 | 2885 | 3605 | 2705 | 2765 | |
